Product Name: Polyvinyl butyral
CAS: 63148-65-2
Molecular Formula: C16H28O5
Molecular Weight: 300.395
Synonyms: polyvinylbutyral resin;poly(vinyl butyral);PVB

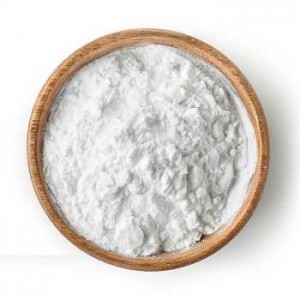

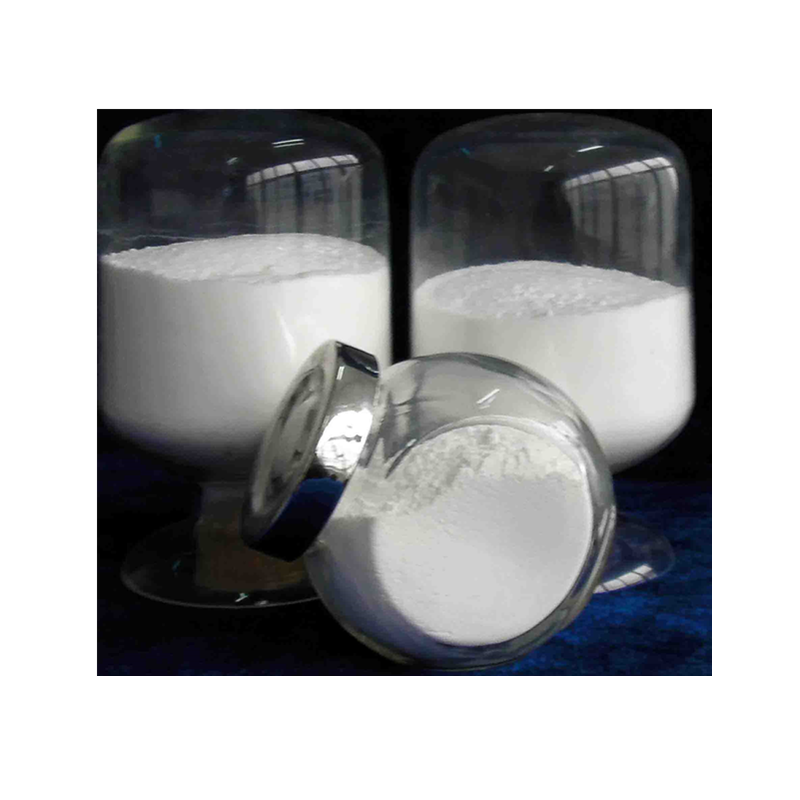

Polyvinyl Butyral PVB Resin CAS 63148-65-2 is fine-grained, free-flowing white powder. PVB is produced by reacting polyvinyl alcohol (PVOH) with butyraldehyde in an acid medium (acetalization reaction). It is a thermoplastic polymer showing good mechanical properties, good flexibility, optical clarity and excellent adhesion to different substrates. It is compatible with a broad range of other resins and shows good solubility in different organic solvents. PVB can be used in a manifold of applications such as industrial coatings, laquers, primers, printing inks, adhesives, fiber binders, temporary binder for ceramics, Film for safety glass, etc.

Specification

Application

Used as coatings

Coating for lumber: The surface-finishing agent for glued boards, substratum coatings for hard boards and insulating materials.
Coating for metals: Mixed with other natural resins, synthetic resins and drying oil,
it can betterthe resistance to impact, flexibility and bond ability of thermoset resins.
Priming paint for metals: PVB resin has very strong adhesiveness to metals, and good bondability to surface coatings.
So it can be used as a priming paint for metallic materials, such as steel, aluminium, galvanized iron, copper and so on.

And it is widely exploited in boats and ships, bridges, aircrafts and electron devices, etc.

Concrete coating: PVB liquor can be used as substratum coating; the durability of water emulsion coating film can be improved.

Waterproof coating:  As a waterproof coating, good result can be achieved after PVB is added in ,and it can be used for making tents, overcoats, food bags.

Protective coating for gloss surfaces: It is used as varnish for wooden handicrafts, paint for wires and other metal plating surfaces.

Coating for leather:  The thin film of PVB shows its very strong extensibility at normal temperature,and it can also maintain this property at low temperature. As a result, it can be used to produce soft and elastic leather films for its distinctive character.
Coating for vacuum vapor deposition: PVB liquor can be adhesive to the surfaces of plastic,Paper and metals.
So it can be used for vacuum vapor deposition, for instance, the adhesive for vacuum aluminium plating and the coating for its processing surface.
Coating for metal foil: Coat PVB liquor on metal foil, then the strength and moisture resistance offoil can be improved, and heat sealing just can wrap foil wholly, applying to the package of foodstuff, such as chocolate, biscuits, and automatic packing of medicine and camera attachments, etc. Oil-ink for metals: Mixed with nitro-cotton and malefic acid resin, etc., it can be used as oil-ink for aluminium and copper sheets, etc.
Used as adhesives
Adhesive to enamel-insulated coils of wire: Coat PVB liquor on the coils and heat it, then the coils can be adhered.
Adhesive to metals: When PVB is mixed with phenolic resin, it can be made up into acetal phenolic glue of different specifications and used to adhere various metals. Coat the liquor on the surfaces of metals, and after it vaporates, the coated metals are pressed heat.
Adhesive to glass: PVB resin has very high adhesive force, it is used to adhere glass for its moderate elasticity and softness.
Adhesive for “Transfer Printing Trademarks”: PVB can be used as the adhesive agent of “Transfer Printing Trademarks” For porcelains. For instance, “Pattern Papers for Porcelains” has become one of its important uses. In addition, it can also be used for “Transfer Printing Trademarks” in textile products.
Pressure-sensitive adhesive: It is used as raw material of pressure-sensitive adhesive tapes, such as the adhesive tape for glass paper, polyethylene adhesive tape and so forth.
Adhesive for heat sealing: PVB can be mixed with natural resins, synthetic resins and plasticizing agent and used as adhesive for heat sealing.
Film adhesive bond: PVB is mixed with other synthetic resins, synthetic rubber and plasticizing agent, then it can be used to adhere cloths or other materials by heating.
Adhesives for other uses: PVB can be used as materials to produce adhesive for non-woven fabric, adhesive for electrostatic flocking and adhesive for leather.

Application in fiber processings
Coating:  Coat PVB liquor added in with plasticizing agent on kinds of textile products, and the goods are awarded the properties of water-proofness and resistance to soiling, etc., and it won’t destroy the original feel and style. And the processing result can be improved by adding cross-linking resin and curing agent in, etc. PVB emulsion can also be processed in this way.
Dyeing and printing of clothes: Both PVB liquor and emulsion can be used for dyeing and printing of cloths. Further more, the dyeing and printing result is satisfying. It is good in washing resistance and non-discoloration. The abrasion-proofness and pliability of cloths can be improved by improved by finishing with other resins.

Packing

15kg/PE Bag, 8100kg/20”container
